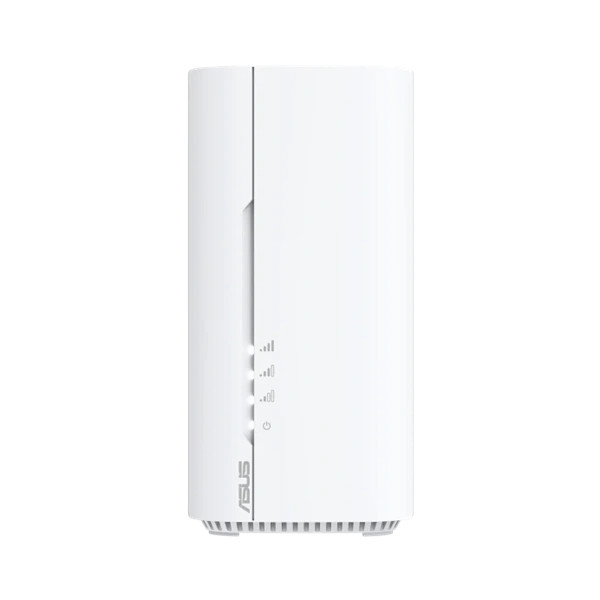

ASUS 4G Modem + Wireless Router Dual Band BE3600 1xWAN(2.5Gbps) + 3xLAN(1000Mbps), 4G-BE58

Model

4G-BE58

Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Connectivity Technology

4G LTE Cat 6: 300Mbps
2.4GHz WiFi: 688Mbps
5GHz WiFi: 2880Mbps

Antenna

8 x internal fixed antenna
2 x external TS-9 antenna connectors

Memory

Flash 128MB
DDR4 RAM 512MB

Operating Frequency

5 GHz
2.4 GHz

Operating Mode

Access Point Mode
Modem Router Mode
AiMesh Node Mode
Wireless Router Mode

I/O Ports

1 x 2.5G WAN/LAN port
3 x Gigabit LAN ports
1 x Nano SIM slot

Buttons

Power, Reset, WPS

LED Indicator

System LED
Strong/medium/weak signal LEDs

Power Supply

AC Input: 110V~240V (50~60Hz)
DC Output: 12V-2A

Package Content

4G-BE58 WiFi 7 Router
Quick Start Guide
Warranty Card
RJ45 Cable
Power Adapter

Product Weight (g)

960

Product Dimensions

112.7 x 112.7 x 227

Parental Control

Customized Internet Schedule

Guest Network

Support Guest Network, Guest Network Connection Time Limit

Security

WPA/WAP2-Enterprise,WPA/WPA2-Personal,WPA2-Enterprise,WPA2-Personal,WPA2/WPA3-Personal,WPA3-Persona, WPS, SSH, Firewall, 64, 32, 64

AiProtection

AiProtection Classic, • Router Security Assessment, • Malicious Site Blocking

VPN

VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Server Open VPN, VPN Server PPTP

Traffic Control

• Bandwidth Limiter, Traditional QoS, Real-time traffic monitor, Wired Traffic Monitor

WAN

Internet Connection Type : Mobile WAN, Ethernet WAN, Dual WAN, Port Forwarding, DMZ, DDNS, NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, Universal Beamforming, Explicit Beamforming

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

Administration

SMS Message, Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log
