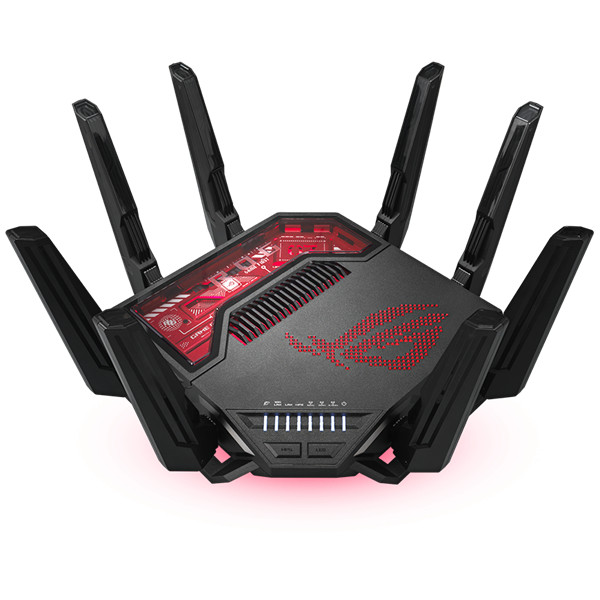

ASUS Wireless Router Tri Band BE19000 2xWAN(1x10Gbps,1x2.5Gbps) + 5xLAN(1x10Gbps,3x2.5Gbps,1x1Gbps) + 2xUSB, GT-BE19000

Model Name

GT-BE19000

Network Standard

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IPv4

IPv6

Product Segment

BE19000 ultimate BE performance: 1376+5764+11529 Mbps

WiFi Data Rate

2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps

5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp

6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Antenna

External antenna x 8

Transmit / Receive

2.4GHz 4x4

5GHz 4x4

6GHz 4x4

Processor

2.6GHz quad-core processor

Memory

256 MB Flash and 2 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz / 6 GHz

2.4 GHz

5 GHz

6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports

1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0

Buttons

WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator

WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
WPS x1
6GHz x1
5GHz x1
2.4GHz x1
Power x1

Power Supply

AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 5 A current

Package Content

GT-BE19000 tri-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

2000 g

Product Dimensions

350.41 x 350.41 x 220.6 mm

AiMesh

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Game Boost / Acceleration

Game Radar

WTFast

Mobile Game Mode

Gear Accelerator

ROG_First

OpenNAT (Game Profile)

Gaming Port

Gaming Network

Parental Control

"Allow you to block access to unwanted websites and apps."

Web & Apps Filters

Time Scheduling

Reward

Parental Control Customized Internet Schedule

• Maximum Parental Control profile : 64

• Maximum Parental Control content filter rule : 64

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

Support Guest Network Pro

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security

AiProtection

VPN

WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN

Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP

Internet Connection Type : Internet Connection Type :

Internet Connection Type : • PPPoE

Internet Connection Type : • PPTP

Internet Connection Type : • L2TP

Internet Connection Type : • Automatic IP

Internet Connection Type : • Static IP

Internet Connection Type : • IPSec

Dual WAN

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

VLAN

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Wi-Fi Radar

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface

WEB: ASUSWRT

APP: ASUS Router APP

Operating system : ASUSWRT

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
