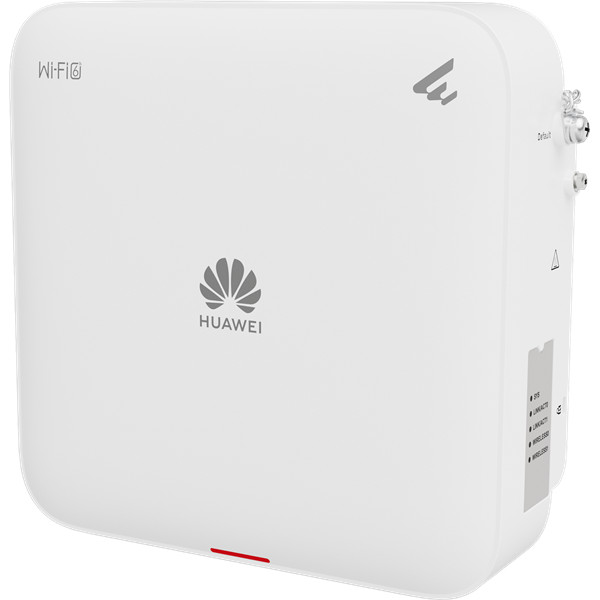

Huawei eKit Wireless Access Point DualBand,BLE,WiFi 6,1.775Gbps,Smart Antenna,1GE uplink,1GE downlink,POE w/o AC,kültéri

• Részletek
• Adatok

Részletek

Installation Type	Wall pole
Dimensions without packaging (H x W x D) [mm(in.)]	200 mm x 200 mm x 69 mm
Weight without packaging [kg(lb)]	1.91 kg
Weight with packaging [kg(lb)]	3.73 kg
Power supply mode	PoE
Input voltage range [V]	PoE: 802.3at/af
Service port surge protection	PoE port: Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

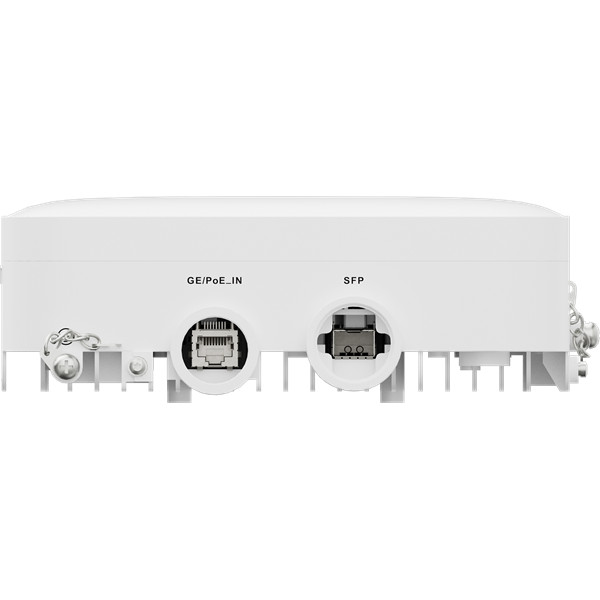

Maximum number of physical ports on the entire device	GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE SFP x 1
Long-term operating temperature [°C(°F)]	-40°C to 65°C(From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +80°C
Long-term operating relative humidity [RH]	0% RH ~ 100% RH
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	earthing ground
Radio number	2
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard	2.4G:802.11b/g/n/ax 5G:802.11a/n/ac/ac wave2/ax
Radio interface	Built-in directional antenna
Antenna gain	2.4G:10dBi 5G:11dBi BLE:5dBi
Maximum transmit power	2.4G: 28dBm(Max) 5G: 27dBm(Max) (note: this is MIMO total radio power, the same as: 2.4G: 25dBm/chain(Max) 5G : 24dBm/chain(Max)) BLE:<10dBm

Adatok

Gyártó:

Huawei eKit

EAN:

6901443451289

EAN:

6901443451289

Gyártó:

Huawei eKit

Gyártói cikkszám:

02355VFB

Garancia:

36 hónap

Garancia (hónap):

36

Termék gyártója:

Huawei eKit
