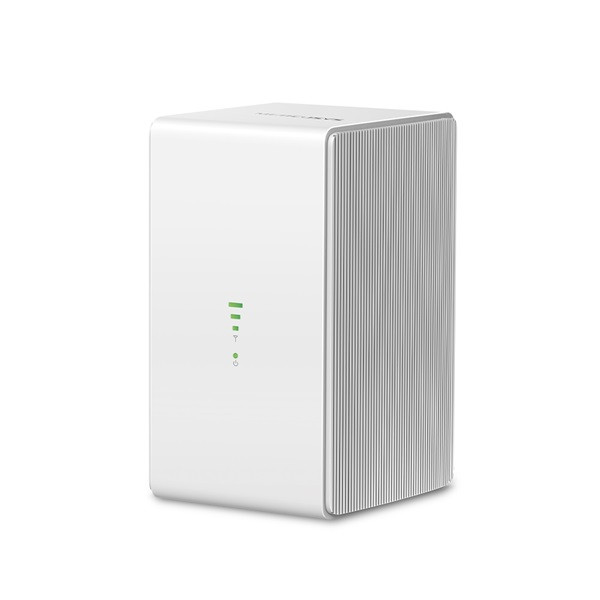

MERCUSYS 3G/4G Modem + Wireless Router N-es 300Mbps 1xWAN/LAN(100Mbps) +1xLAN(100Mpbs), MB110-4G

• Részletek
• Adatok

Részletek

Wireless Standards



IEEE 802.11b/g/n



Frequency



2.4 GHz



WiFi Speeds



300 Mbps



Reception Sensitivity



11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm



Transmission Power



< 20 dBm (2.4 GHz)



Wireless Security



WPA-PSK / WPA2-PSK



Wireless Functions



Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

Wireless

DHCP



Server

Software

Dimensions



90×92×150.5 mm



Interfaces



1× 10/100Mbps LAN/WAN Port

1× 10/100Mbps LAN Port

2× 4G/3G External Antenna Ports

1× Nano SIM Card Slot



Button



WPS/Reset Button



Ethernet Ports



1× 10/100 Mbps LAN/WAN Port +

1× 10/100 Mbps LAN



Network Type



EU:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 MHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)

TDD-LTE: B40 (2300 MHz)

HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Hardware

Package Contents



300 Mbps Wireless N 4G LTE Router (MB110-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide



Environment



Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Others

Adatok

Gyártó:

TP-LINK

EAN:

6957939001063

EAN:

6957939001063

frekvencia:

2.4 GHz

Gyártó:

TP-LINK

Gyártói cikkszám:

MB110-4G

Garancia:

36 hónap

Portok száma:

2

Szabvány:

802.11b, 802.11g, 802.11n

Garancia (hónap):

36

Termék gyártója:

TP-LINK
