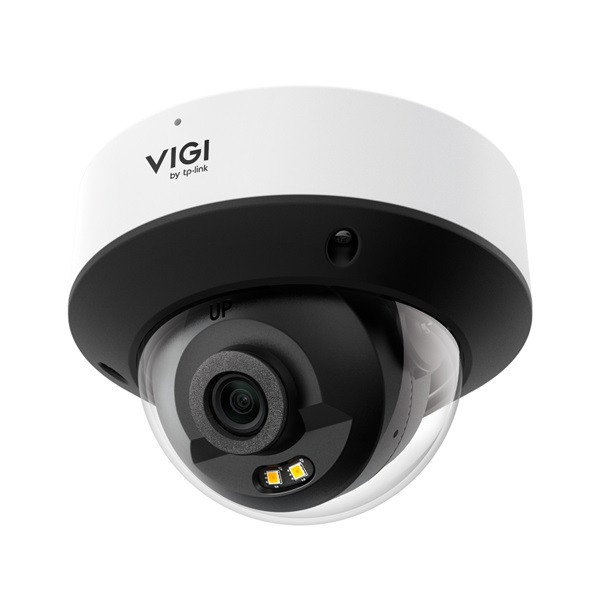

TP-LINK IP Kamera kültéri színes éjjellátó 2 Megapixel, 2.8mm Objektív, INSIGHT S225(2.8MM)

• Részletek
• Adatok

Részletek

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm
Aperture	F2.0
FOV	• 2.8 mm: Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117° • 4 mm: Horizontal : 75.2°, Vertical: 40.8°, Diagonal: 88.3°
Lens Mount	M12
DORI Distance	• 2.8 mm Detect: 153 ft (47 m) Observe: 64 ft (19 m) Recognize: 31 ft (9 m) Identify: 15 ft (5 m) • 4 mm Detect: 194 ft (59 m) Observe: 81 ft (25 m) Recognize: 39 ft (12 m) Identify: 19 ft (6 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 353.5°, Tilt: 0° to 75°, Rotate: 0° to 355°

ILLUMINATOR
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Integrated Infrared-White LED	• Quantity: 2 • IR Range: 98 ft (30 m)*3 • White LED Range: 98 ft (30 m)*3 • IR Wavelength: 850 nm

VIDEO
Max. Resolution	1920x1080
Main Stream	• Frame Rate: 50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate: 50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/Smart IR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	N/A
Audio Input	Yes
Audio Output	N/A
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI APP, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • People Detection • Vehicle Detection
Basic Event	• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login)
Alarm Linkage	• Upload to FTP server • Push Notifications • Send to Alarm Server • Email Alarm

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
On-board Storage	N/A
Built-in Microphone	Yes; Records Anything Going on within a 15 ft (4.6 m) Radius of the Camera
Built-in Speaker	N/A
Audio	N/A

GENERAL
Operating Temperature	-30 °C to 60 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	0.5 Kg
Power Supply	• 12V DC ± 5%, Max. 6.3 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 6.7 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	O4.5 × 3.4 in (O113.5 × 85.7mm)
Certifications	CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10

Adatok

Gyártó:

TP-LINK

EAN:

1210002606646

EAN:

1210002606646

csatlakozók:

LAN

kivitel:

Dóm Kamera

felbontás:

1920 x 1080 (FHD1080) 16:9

Gyártó:

TP-LINK

Gyártói cikkszám:

INSIGHT S225(2.8MM)

Garancia:

48 hónap

Színes/FF:

Színes

Kártyatípus:

MicroSDXC

Kültéri kivitel:

Van

Energiaellátás:

Hálózat és POE

Garancia (hónap):

48

Termék gyártója:

TP-LINK
