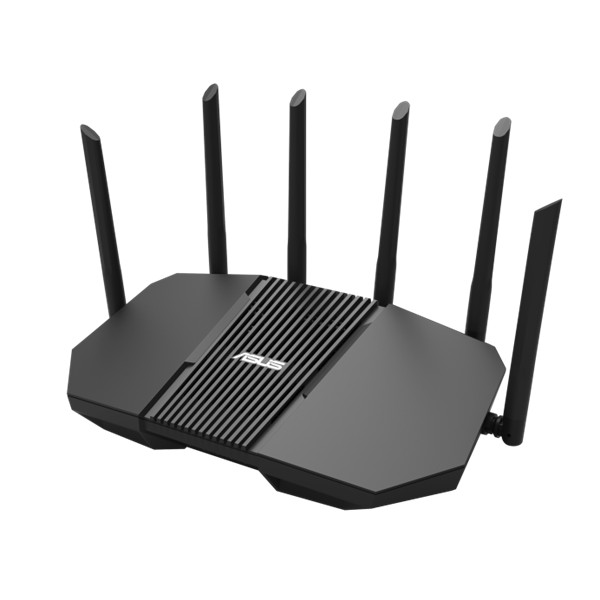

ASUS Wireless Router Tri Band BE9400 1xWAN(2.5Gbps) + 3xLAN(2.5Gbps) + 1xUSB, RT-BE90U

Model

ASUS RT-BE90U

Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

BE9400 ultimate BE performance : 688+2882+5764 Mbps

WiFi Data Rate

WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna

External antenna x 6

Transmit / Receive

6GHz 2x2
5GHz 2x2
2.4GHz 2x2

Processor

1.5GHz quad-core processor

Memory

256 MB Flash and 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Operating Frequency

6 GHz
5 GHz
2.4 GHz

Operating Mode

Repeater Mode
Media Bridge Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode

I/O Ports

1 x 2.5 Gbps for WAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1

Buttons

WPS Button, Reset Button, Power Button

LED Indicator

WAN(Internet) x1
6GHz x 1
5GHz x 1
2.4GHz x1
Power x1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current

Package Content

RT-BE90U Tri Band WiFi 7 Router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

761 g

Product Dimensions

320 x 180 x 191 mm

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3, Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal

Security

AiProtection, VPN, WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

AiProtection, • Router Security Assessment, • Two-Way IPS

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

• IPSec
• Static IP
• Automatic IP
• L2TP
• PPTP
• PPPoE
Internet Connection Type :, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay
• SIP Pass-Through
• H.323 Pass-Through
• RTSP Pass-Through
• IPSec Pass-Through
• L2TP Pass-Through
• PPTP Pass-Through
NAT Passthrough :

LAN

DHCP Server, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming

USB application

4G / 5G Auto Mobile Tethering, • FAT32
• ext4
• ext3
• ext2
• vFAT
• NTFS
• HFS+
File System :, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
