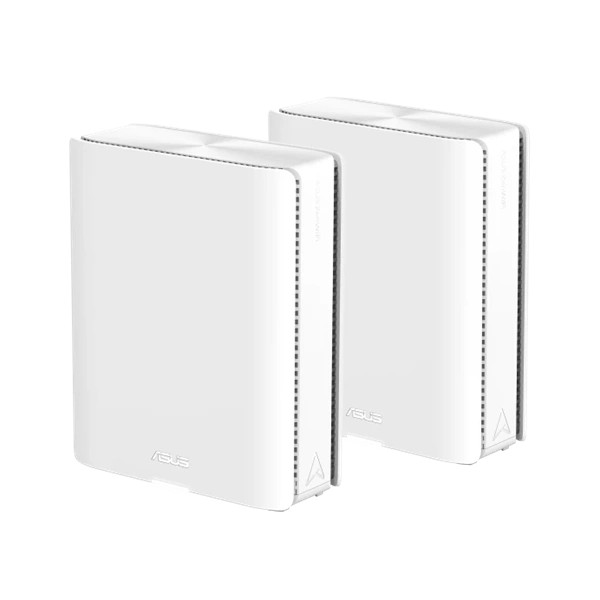

ASUS Wireless ZenWifi Mesh Networking system BE25000, BQ16 (W-2-PK)

Model

ASUS ZenWiFi BQ16

Model Name

BQ16 (W-3-PK)
BQ16 (W-2-PK)
BQ16 (W-1-PK)

Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

BE25000 ultimate BE performance: 1376+5764+5764+11529 Mbps

WiFi Data Rate

WiFi 7 (802.11be) (6GHz): up to 11529 Mbps
WiFi 7 (802.11be) (5GHz-2): up to 5764 Mbps
WiFi 7 (802.11be) (5GHz-1): up to 5764 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps

Antenna

Internal antenna x 12

Transmit / Receive

6GHz 4x4
5GHz-2 4x4
5GHz-1 4x4
2.4GHz 4x4

Memory

RAM 2GB , Flash 256MB

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz / 6 GHz, 6 GHz
5 GHz-2
5 GHz-1
2.4 GHz

Operating Mode

Access Point Mode
AiMesh Node Mode
Wireless Router Mode

I/O Ports

10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0

Buttons

Reset/ WPS/ Rocker Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19.5V with max. 3.5A current
DC Output : 12V with max. 5A current

Package Content

ZenWiFi BQ16
RJ-45 cable
Power adapter
Warranty card
Quick start guide

Product Weight (g)

1341g

Product Dimensions

214*174.2*72 mm

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

Router APP

APP: ASUS Router APP

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4G+5G/ 2.4G+5G+6G: 8, Guest Network Connection Time Limit, Open system, WPA/WPA2-Personal/WPA3-Personal

Security

AiProtection, VPN, WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise , WPA2 Personal, WPA Personal, WPA Enterprise , WPS support, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

• Static IP
• Automatic IP
• L2TP
• PPTP
• PPPoE
Internet Connection Type, Dual WAN, 4G / 5G Auto Mobile Tethering, Port Forwarding, • Maximum Port Forwarding Rule : 64, Port Triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS

LAN

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, Universal Beamforming, Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering, HDD Hibernation, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server

Administration

Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
